Temperature control

Remove VOC (Volatile Organic Compounds) from your house!

Assembly time: 10 min

Components:

  • Fan available on our shop here
  • HEPA & Carbon filters available on our shop here
  • Soldering iron or wire connectors
  • You can find everything you need for electrical set up here
  • Or go to our shop to buy the electrical wiring harness fully equipped here

STL files in “13A_HEPA_filter” folder:

  • 13A_HEPA filter
  • 13A_HEPA filter cover

Air flow schematics:

Air comes inside the enclosure through the air entry on the bottom left of the enclosure.

The fan is extracting hot air (with VOC compounds) out of the enclosure through the HEPA and carbon filter.

An optional air entry can be installed in order to cool the mainboard.

Assembly:

Step 1 Preliminary information

You will need all these components.

Working on the enclosure’s upper part dissassembled is easier but not necessary.

Step 2 Filters assembly

005_fan_filter (2)
005_fan_filter (3)
005_fan_filter (2) 005_fan_filter (3)

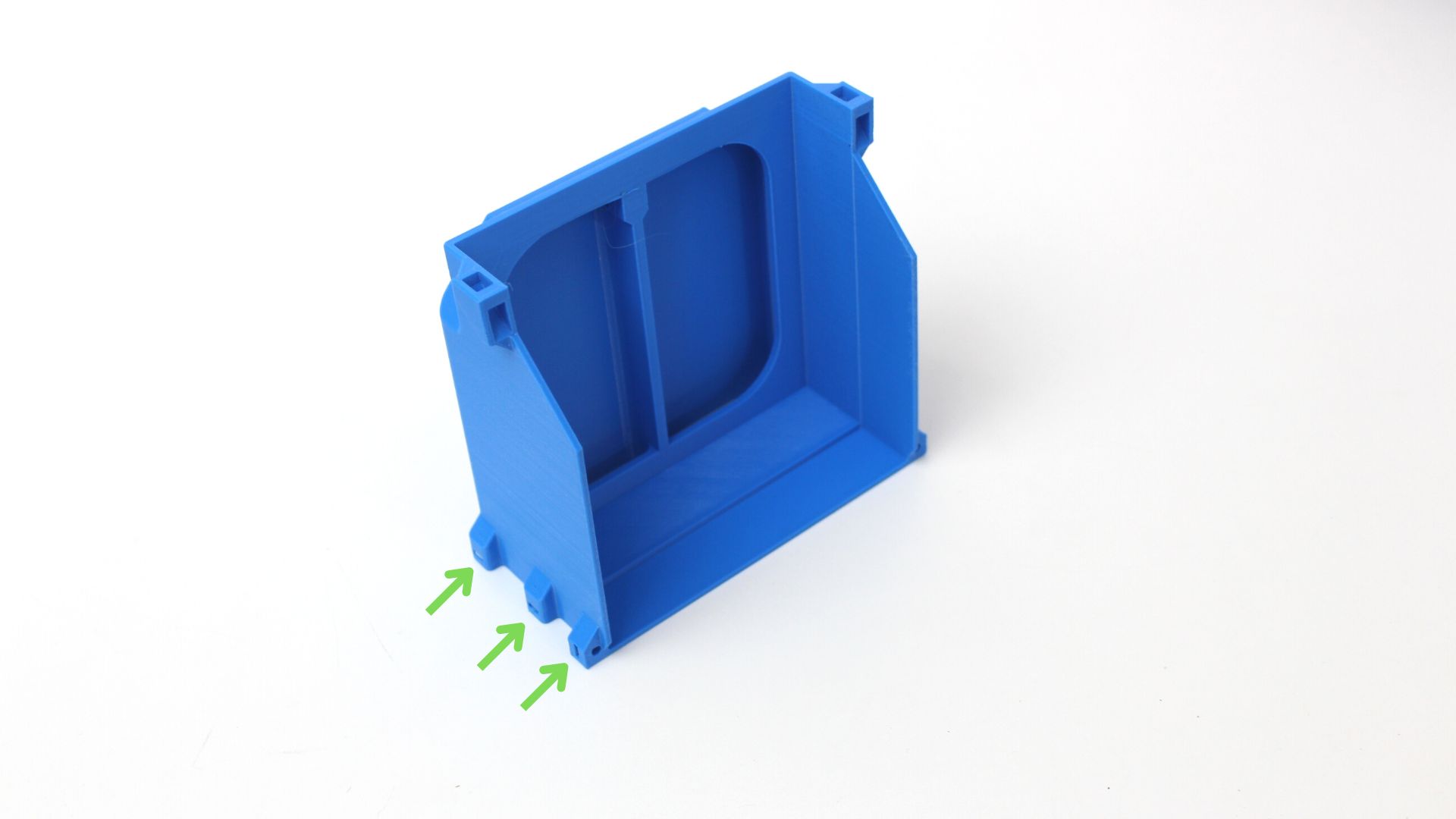

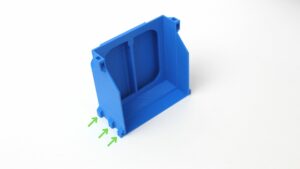

Insert M3 square nuts in every slot of the filter’s box

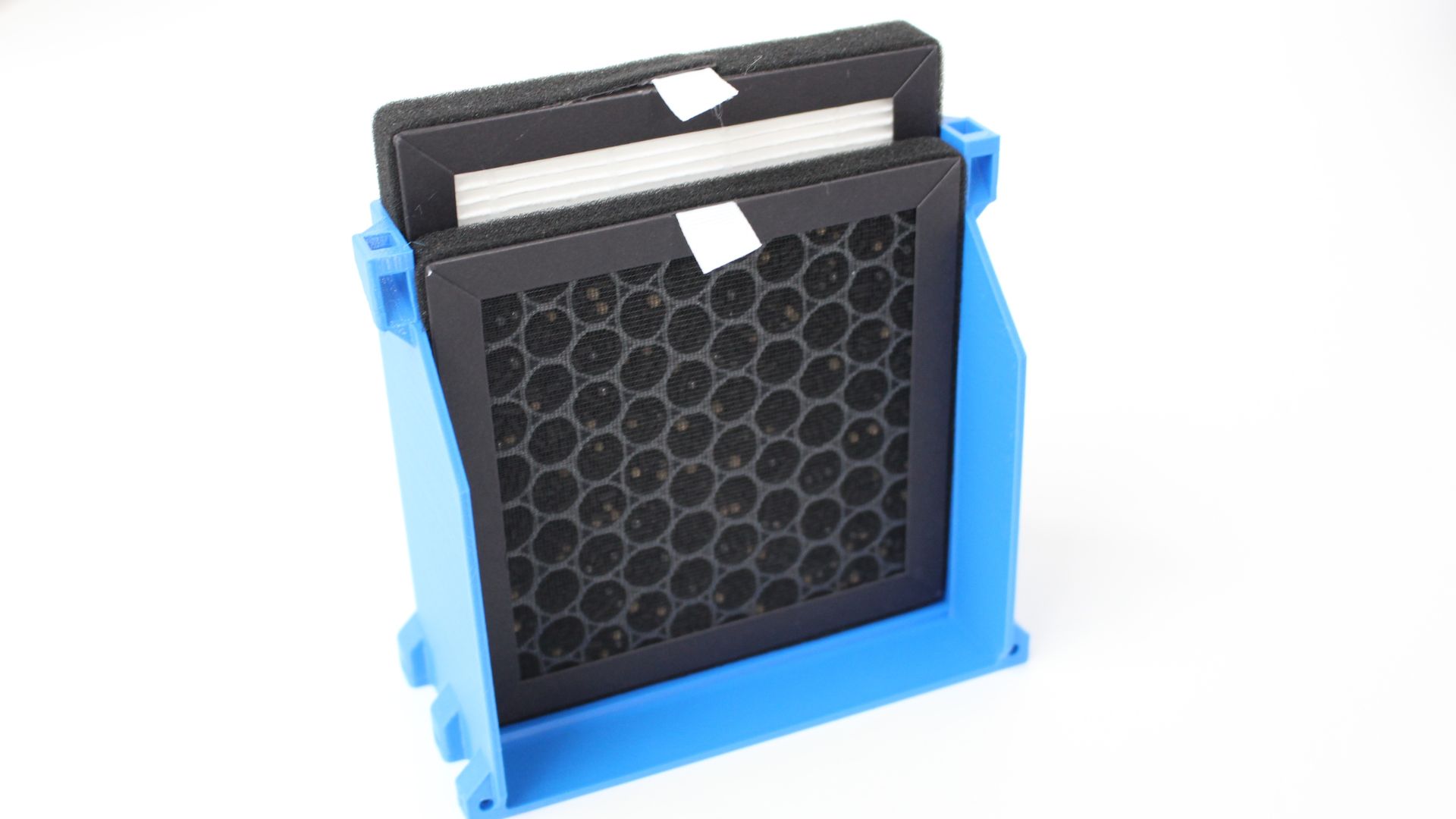

Add filters inside the box.

Step 3 Fan assembly

Insert the fan.

The arrow must go in the direction of the filter.

Step 4 Final assembly

005_fan_filter (5)
005_fan_filter (6)
005_fan_filter (5) 005_fan_filter (6)

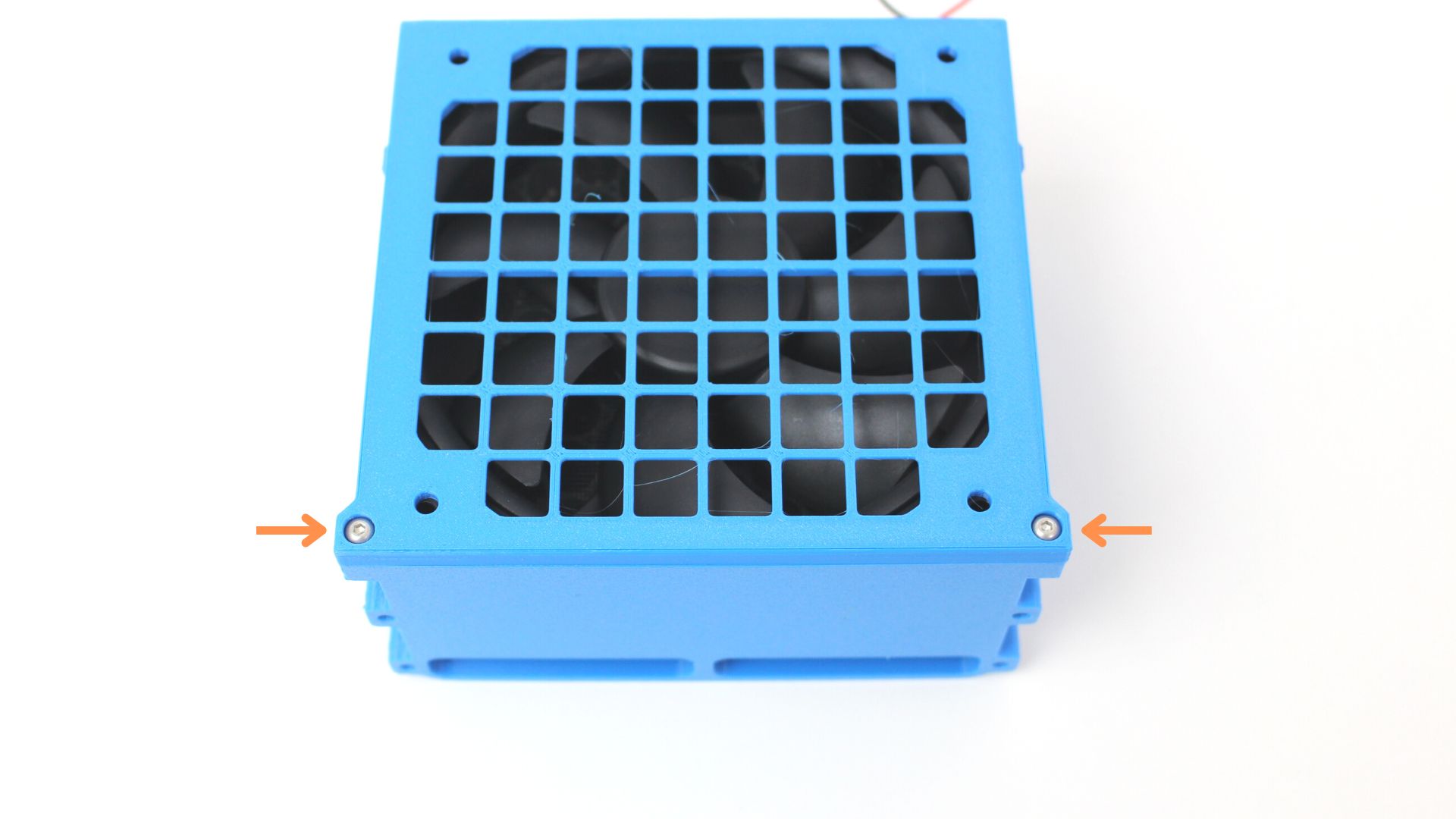

Add the fan grid and tightne with 2 screws.

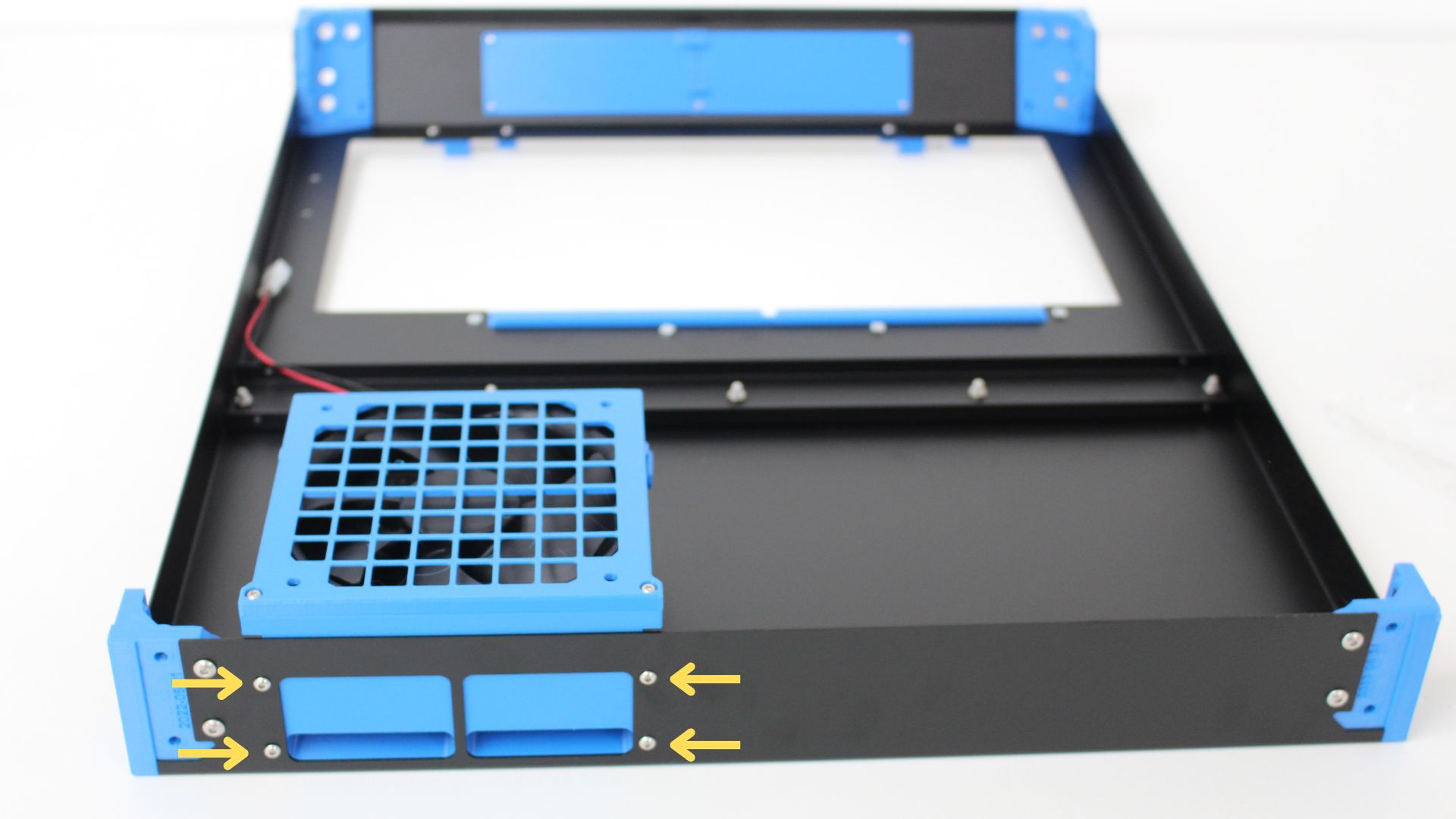

You can now assemble to youenclosure’s cover, with the 4 M3 screws.

Well done!
